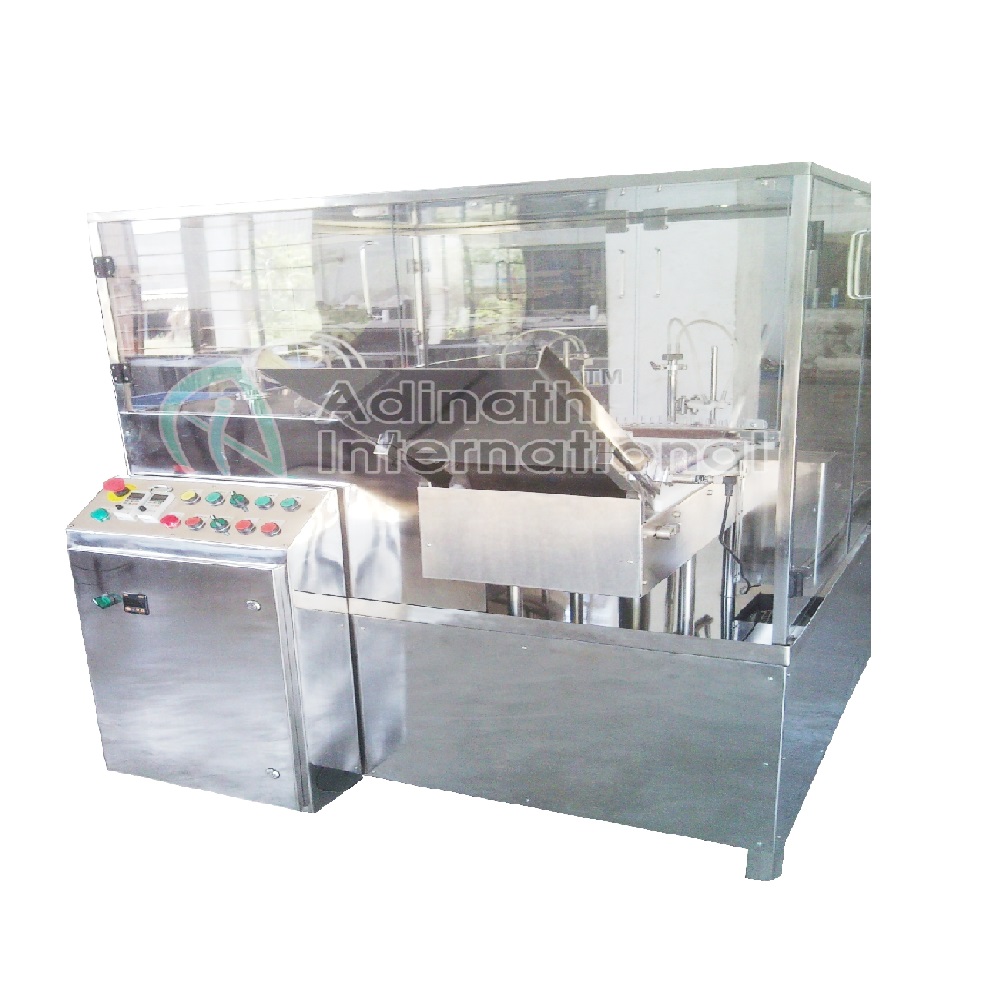

Automatic External Vial Washing Machine


Automatic External Vial Washing Machine: Model AI-EVW is designed to wash the outer surface of round shaped Vials (5 ml to 100 ml vials) This machine washes the outer sides of vials and eliminates the particles that are formed on the Vials, which are previously filled and sealed.

Salient Features

  • Infeed Turn Table.
  • Imported Gear Motor for main drive, unscramble and scrambler.
  • A.C. Frequency Drive for main drive, unscramble and scrambler.
  • “No Vial – No Washing” system.
  • Acrylic Cabinet for machine.
  • Total cGMP model.
  • S.S frame structure.
  • Can handle vial sizes from 5ml to 100ml with the help of Change Parts.
  • “No Vial – No Washing” system eliminates wastage of water & air.
  • Easy cleaning & maintaining.
  • Machine can be equipped with PLC system optionally.
  • Stops supply of water & air when acrylic doors opened during operation.
  • Normal water required for washing. No hot water required.
  • When there is no vial on conveyor, it stops the water & air supply.

Utilities

  • Pneumatic Air: Filtered, oil free, sterile low-pressure Air at 5kg/cm (4/6 bar) 150 CFM.
  • Water supply:   120 litre/ hour (approx.)
  • Note:    You can reuse the drain DM water which is used in the Vial Washing Machine.

Input Specifications

  • 5ml to 100ml vial (Dia. 25 mm to 52 mm max.)
  • Height: 38 mm to 120 mm

Technical Specification

Model No. AI-EVWM 200
Direction Left to Right
Production Rate Up to 200 vials/ min
Electrical Supply 440 Volts 3 Phase 50/60 Hz (5 wire)
Power Requirement 2 HP
Height of Conveyor 900mm (approx.)
Dimensions 1800mm (L) X 1200mm (W) X 1200mm (H)
Net Weight 550 kgs. (approx.)
Gross Weight 1211 kgs. (approx.)
* Specification offered is for reference purpose only.
