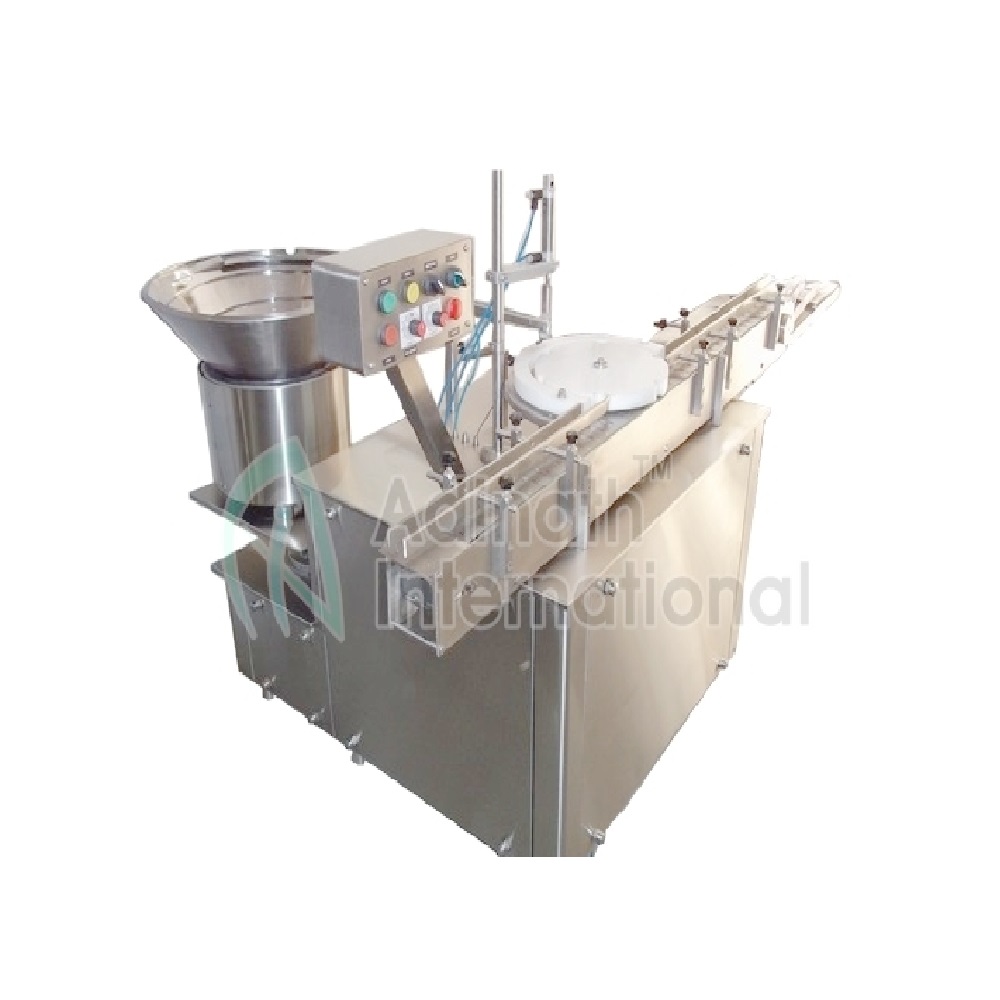

Automatic Eye Drop Filling and Capping Machine


Automatic Eye Drop Filling and Capping Machine Model: AI-EFCM 40, The machine consists of one Side turntables, S.S. slat conveyor belt, eccentric pre-gassing, filling & post–gassing S.S. -316 nozzles precision-built S.S. – 316 Syringes, silicon rubber tubings, pneumatic system for inner cap placement, mechanical orientation type bowl & chute for outer cap placement, easy – reach compact panel etc. Due to its minimum distance between filling and stoppering, the risk of contamination is reduced. It is designed for operating in a sterile area and for utilizing it under laminar flow protection. The un-scrambler itself has been designed in the machine to eliminate dead ends and difficult to clean spot.

Salient Features:

  • Filling, Inner Cap Placement & Screw Capping Unit is completely in corporate in single body Structure.
  • Pneumatic System for Inner Cap Placement
  • Mechanical Orientation type Bowl & Chute for Screw Cap Placement
  • All Liquid Contact Parts are of S.S. 316, the Body Structure is built up of S.S. 304 Pipe.
  • Co-eccentric Nozzles allows very quick and precise setting and making unit compact and manageable.
  • No vial, No Cap – Machine Stop System.
  • Easy reach compact panel provides ease and operation
  • Minimum Change over Time. From one size of container or fill size to another.
  • Each Important individual part required for autoclaving/ sterilization can be removed easily.

Technical Specification:

Model AI-EFCM 40
Speed 40 to 60 Vials/ min.
Filling Volume 0.1 ml to 50 ml
Cap Diameter 20 mm, 25 mm & 28 mm
Filling Accuracy ±1 % on Single Dose
Power Characteristics 440v 3 Phase 50Hz 4 Wire System
Overall Dimension 900 x 900 x 1400 mm
Net Weight 550 Kilograms
