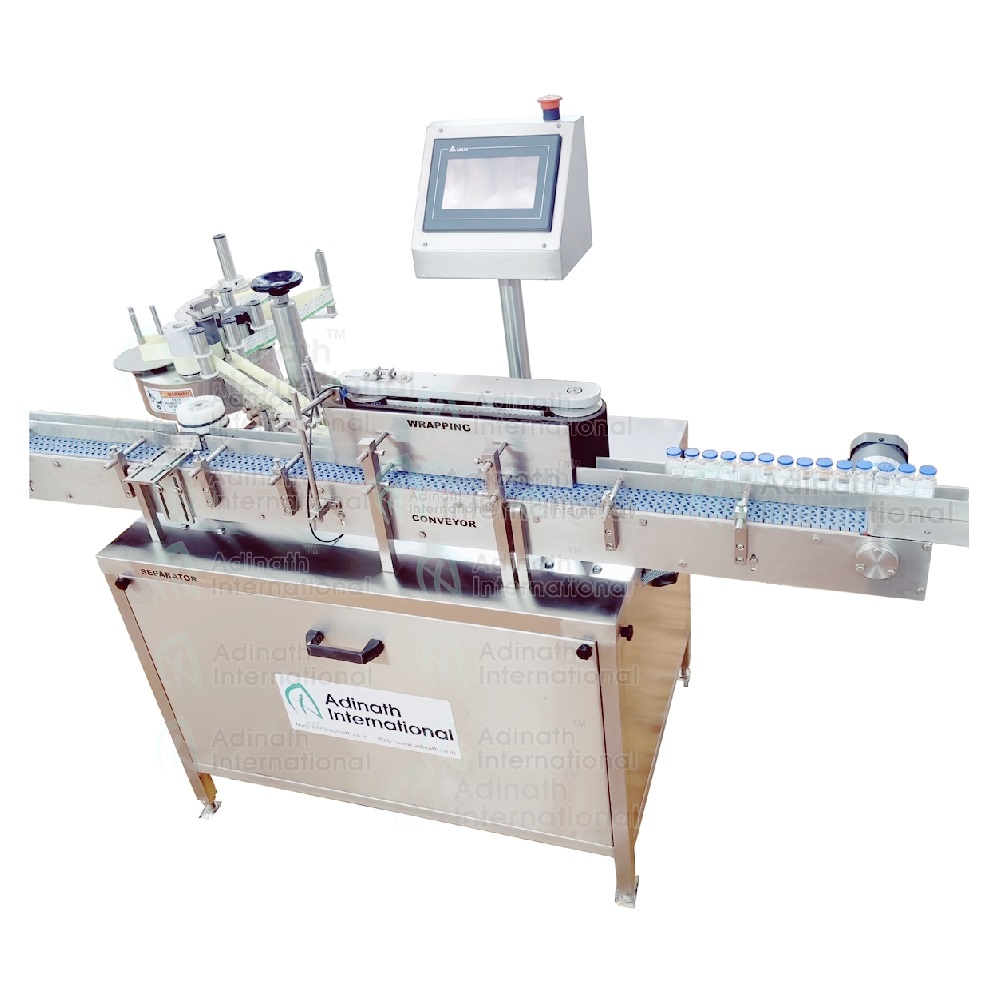

Automatic Vial Sticker Labeling Machine
Automatic Vial Sticker Labeling Machine Model: AI-VSLM 2H is one of the most users friendly vertical vial rotary sticker labeler equipment. This equipment incorporates modern Micro Processor Control Label Dispensing mechanism with sensing system for Label and Product. AI-VSLM 2H model is suitable for Labeling on Round Vials, and other round Objects. It is capable of Labelling up to 200 vials per minute depending on vial and label size. Specially designed electronic and mechanical system to apply transparent (No Look) Labels on Vials at very high speed using optional special label sensing system.
AI-VSLM 2H Automatic Vial Sticker Labelling Machine available in India, with unique single point synchronized speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production.
Machine with highest installation in India. Machine have added advantages like Special Feeding Device enabling feeding of Ampoules/Vials in Vertical Position directly from the trays and similarly collecting the labeled products also in Vertical Position in trays. Operator can also feed the Ampoules/Vials for Labeling On-line on Machine without any stoppage. The feeding system effectively eliminates clumsy, inconvenient, time consuming and prone to breaking of Ampoules etc. at the time of loading the products for labeling compare to other Slant Hopper Feeding system.
Machine also available with optional Turn Table for Feeding of Vials for online transfer of Vials from Capping/Inspection machine to labeling and online transfer of labeled vial to packing conveyor/inspection system, This system helps for continues labeling operation for vials.
Machine can be supplied with Optional Toughened (Tampered) Glass or Acrylic Safety Cabinet. Machines having required all basic features as a standard fitment to match the current market needs and also saves cost and time.
|Mode No.||AI-VSLM 2H|
|Label Height||8 mm to 50/70/90 mm Standard*|
|Label Length||12 mm Minimum|
|Label Roll Dia||400 mm|
|Core Dia||75/76 mm|
|Gap Between two Labels||Approx 3 mm|
|Product Diameter||Up to 25 mm*|
|Electrical||220 VAC Single Phase Power Supply (50/60 Hz)|
|Speed||Up to 200 Labels per minute, Labeling Machine speed also depending on Product and Label Size|
|Product Feeding Belt height||850 mm*|
|Overall dimension||1800 mm(L) X 1350 mm(W) X 1100 mm (H)|
|With T.G. Cabinet||1800 mm(L) X 1350 mm(W) X 1500 mm (H)|
