Mass Mixer

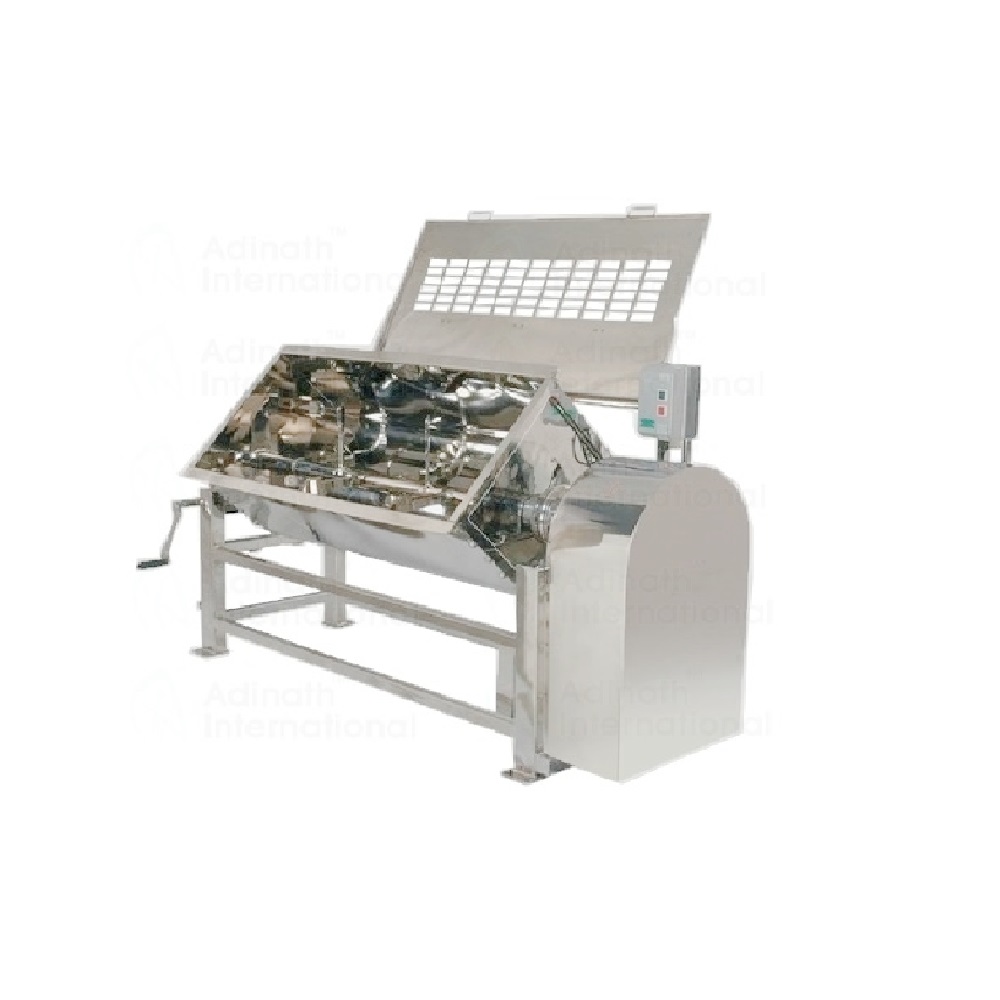

Mass Mixer Machine Model: AMM is basically mixing an assembly wherein the mixing stirrer is in horizontal position in the container & has a single speed, simple rotation. The stirrer rotates around itself at a very slow speed inside the bowl and thereby achieving intimate mixing of dry or wet materials of Tablet Granulation, Powder, Chemicals, and Food & Confectionaries Materials.

Because of a special design feature of machine & stirrer, the mass mixer can be mix the sticky materials & also uniformly and intimately mix the materials which are to be difficult to mix.

Special Features:

  • In compliance with cGMP guidelines.
  • Also available with Standard Painted Model.
  • Conventional efficient mixing through paddle type blades welded to the main shaft horizontally mounted in the container & has single speed, simple rotation.
  • All contact parts of AISI stainless steel 304 material.
  • AISI stainless steel 316 quality contact parts optional.
  • Easy for cleaning and operating.
  • Safety Plastic dust cover provided for apparently seeing the mixing process.
  • Interlocking system at plastic dust cover is provided to avoid the accident.
  • The tilting device provided by means of hand wheel (manually operated) for easy unloading of the material.
  • Specially designed self-adjusting sealing arrangements to ensure no black particle enter into the mixing drum.
  • Models for Small Scale, Laboratory (Research Purpose) Capacity, as per customize requirement are also available.
  • Flame proof electrical can be provided with extra cost.
  • Efficient for mixing of dry or wet materials of Tablet Granulation, Powder Mixing, Chemical, Food, Confectionary etc.

Technical Specification:

Model No. AMM 25 AMM 50 AMM 100 AMM 150 AMM 200 AMM 300
Capacity (Kilograms) 25 Kgs. 50 kgs. 100 Kgs. 150 kgs. 200 kgs. 300 Kgs.
Over Flow Capacity (Litres) 55 110 220 330 440 660
Working Capacity (Litre) 40 88 156 235 310 465
Speed of Stirrer 35 RPM 35 RPM 35 RPM 35 RPM 35 RPM 20 RPM
Electric Motor 2 HP / 3 Phase 3 HP / 3 Phase 5 HP / 3 Phase 7.5 HP / 3 Phase 10 HP / 3 Phase 15 HP / 3 Phase
